File:Dvm 1.png
Size of this preview: 800 × 410 pixels. Other resolution: 1,666 × 854 pixels.
Original file (1,666 × 854 pixels, file size: 55 KB, MIME type: image/png)

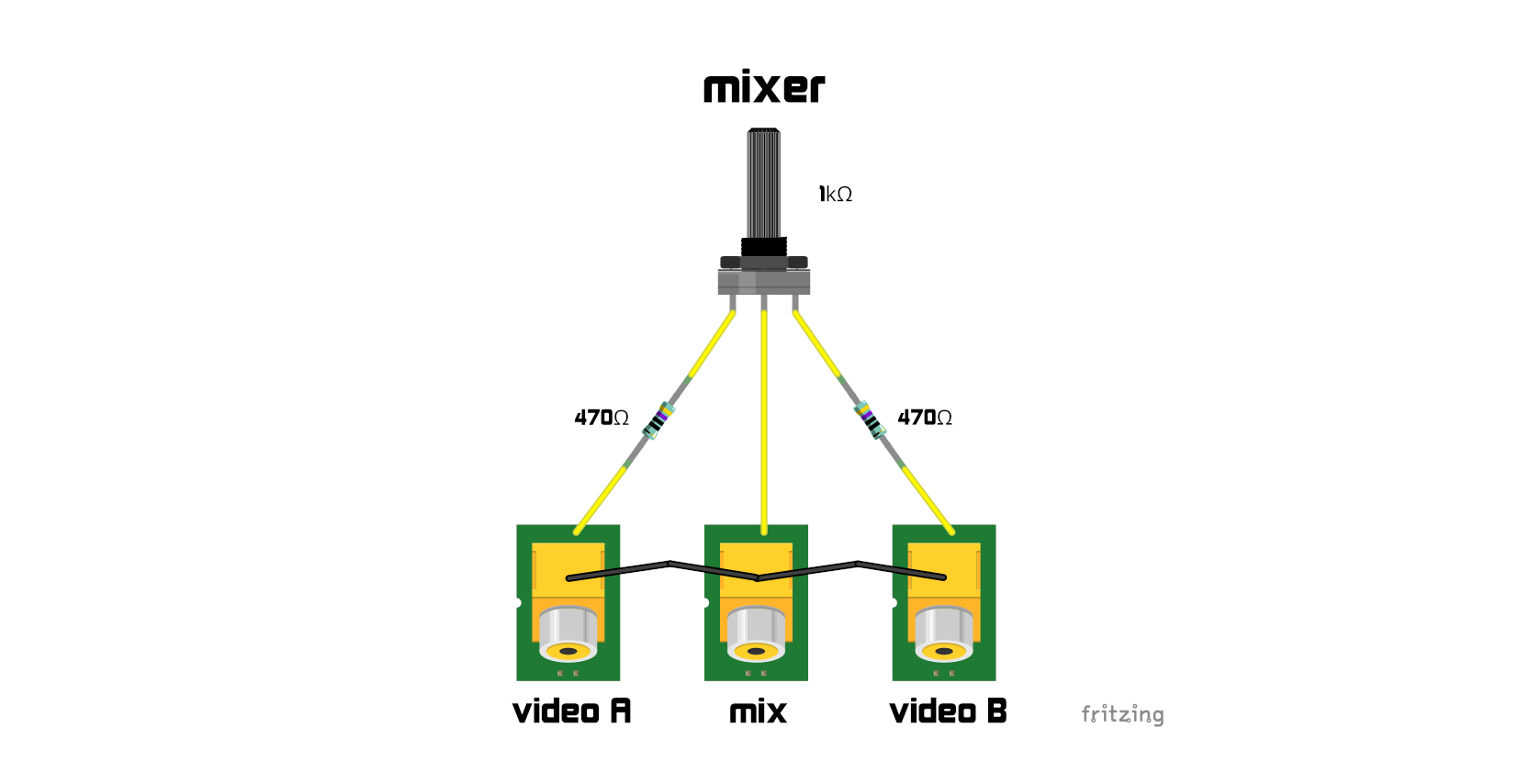

Esquema del dispositiu de barreja: un potenciòmetre de 1kΩ connecta les entrades RCA de Vídeo A i Vídeo B —cadascuna protegida amb una resistència de 470Ω— amb la sortida Mix
